The Bell numbers (1, 1, 2, 5, 15, 52, 203, 877, 4140, 21147, 115975, 678570, 4213597, ...) describe the number of ways a set with *n* elements can be partitioned into disjoint, non-empty subsets.

For example, the set {1, 2, 3} can be partitioned in the following ways:

{{1}, {2}, {3}} {{1, 2}, {3}} {{1, 3}, {2}} {{1}, {2, 3}} {{1, 2, 3}}

The *n*^{th} Bell number can be computed using the formula:

where:

are the Stirling numbers of the second kind.

Here are some diagrams representing the different ways the sets can be partitioned: a line connects elements in the same subset, and a point represents a singleton subset.

{1, 2, 3}, 5 partitions:

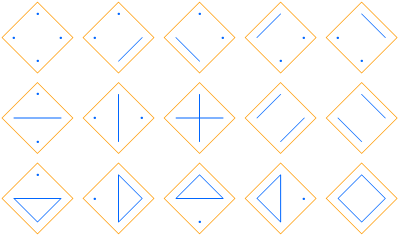

{1, 2, 3, 4}, 15 partitions:

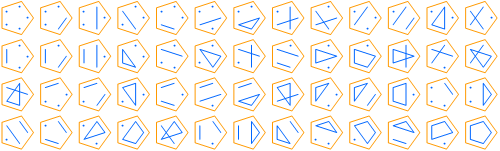

{1, 2, 3, 4, 5}, 52 partitions:

Partitions can be partially ordered by *refinement*. A partition π_{1} is a
refinement of partition π_{2} if every part of π_{1} fits inside a partition of
π_{2}. Thus {{A},{B},{C}} is a refinement of {{A,B},{C}}, but {{A},{B,C}} isn’t since
the {B,C} part doesn’t fit inside any single part of {{A,B},{C}}.
If you break a chocolate bar into two pieces, and then break one of those pieces
into two more pieces, the second partition is a refinement of the first.

This figure shows the lattice formed by the partitions of {A, B, C}:

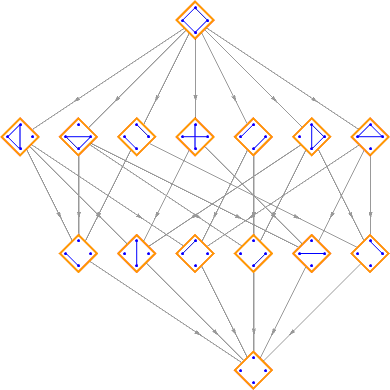

Lattice formed by the partitions of {A, B, C, D}:

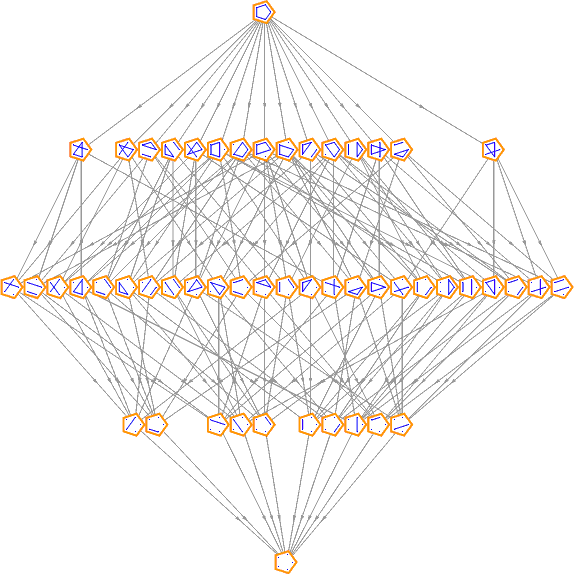

And the partitions of {A, B, C, D, E}:

Each of the rows corresponds to the Stirling numbers of the second kind.

You might also enjoy this beautiful gallery of artistic interpretations: http://hermay.org/jconstant/bell/bellgallery/index.html

Designed and rendered using *Mathematica* 3.0 and (much, much later) 7.0.
