# Lebesgue Curve (and Friends)

Begin with an N shape made by connecting four points at the corners of a square like this: Next, make a copy of the whole figure at each corner of the N shape: Finally, connect the last point of one figure with the first point of the next, where “last”, “first”, and “next” are relative to the initial order of the points: Repeating the process generates a non-self-intersecting, plane-filling curve called the Lebesgue curve:    (I must be doing this sideways, since some references call this the z-order curve.)

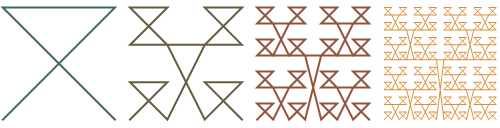

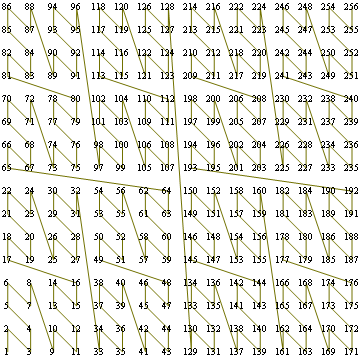

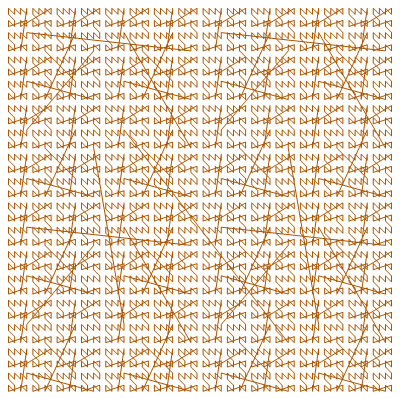

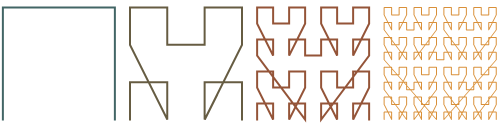

The Lebesgue curve maps (one-dimensional) integers to (two-dimensional) points in a square:   Of course, there are other ways to connect the initial four points and to arrange subsequent figures. The following figures show the evolution of quasi-Lebesgue curves generated by the other possible arrangements.  Alas, randomizing the order of arrangements at each step doesn’t seem that interesting, either: You might enjoy the 3D version of the same thing.

See, for example, Hans Sagan, Space-Filling Curves, Universitext, 1994, pp. 76–80.

Figures created with Mathematica 6.
